Drill Log #2759
Site
Erskine Park Landfill
Well ID
J099
Date Drilled
15-Jun-2020
Responsible Person
Approved Drill Depth (mBGL)
25
Completed Drilling Depth (mBGL)
25
Well Casing Diameter (mm)
225
Surface R.L.
Easting
Northing
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1


Well Seal Length (m)

3.5

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

4

Length of Gravel Above Last Perforation (m)
0.5
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

21



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

21
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
25
Completed Well Casing Depth (m)
25
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Clay/Bentonite
Plastic Seal Type
Bag
Well Casing Rating (PN)
8
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
4
Perf Pipe Start Depth (mBGL)
4
Perf Pipe End Depth (mBGL)
25
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
3.5

CUSTOMER INSPECTION/COMMONUICATION DETAILS
WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other
Photo Thumbail

Erskine Park Landfill - J099  (5 Waste records)
1 5 Other Dirt fill
5 10 Other Dirt fill with bit of industrial
10 15 Other Industrial/ greenwaste material
15 20 Other Industrial/ household
20 25 Other Industrial/household

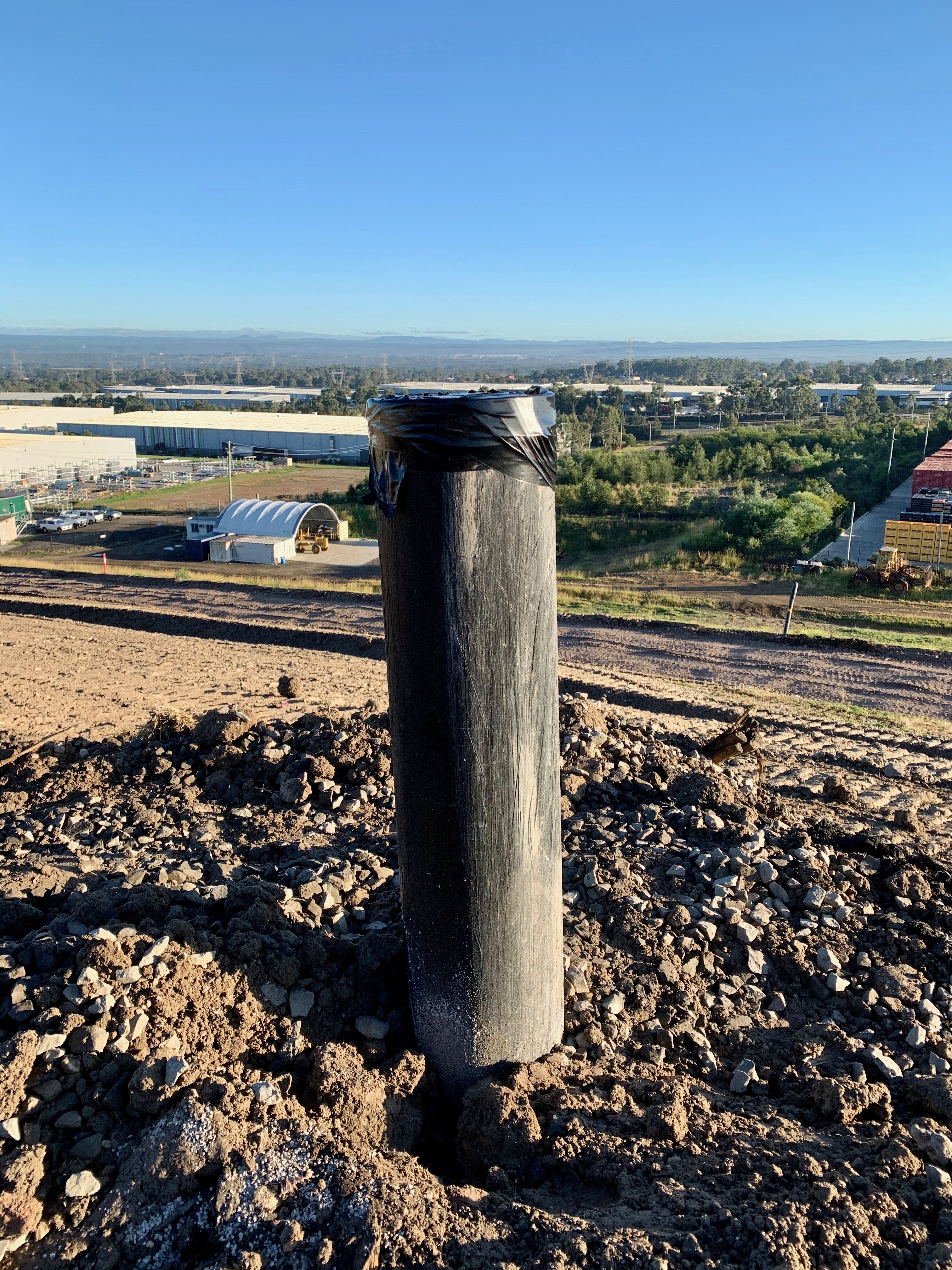

PHOTO COMPLETE WELL
