Drill Log #2808
Site
Erskine Park Landfill
Well ID
H078
Date Drilled
20-Jul-2020
Responsible Person
Approved Drill Depth (mBGL)
22
Completed Drilling Depth (mBGL)
21
Well Casing Diameter (mm)
225
Surface R.L.
Easting
Northing
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1


Well Seal Length (m)

3.5

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

5

Length of Gravel Above Last Perforation (m)
1
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

16.5



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

16
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
21
Completed Well Casing Depth (m)
21
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Bentonite
Plastic Seal Type
Bag
Well Casing Rating (PN)
16
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
5
Perf Pipe Start Depth (mBGL)
5
Perf Pipe End Depth (mBGL)
21
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
3.5

CUSTOMER INSPECTION/COMMONUICATION DETAILS
WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other
Photo Thumbail

Erskine Park Landfill - H078  (8 Waste records)
0 2.6 Capping Material
2.6 5 Household
5 8 Household
8 11 Household
11 14 Household
14 17 Capping Material
17 20 Household
20 21 Other clay

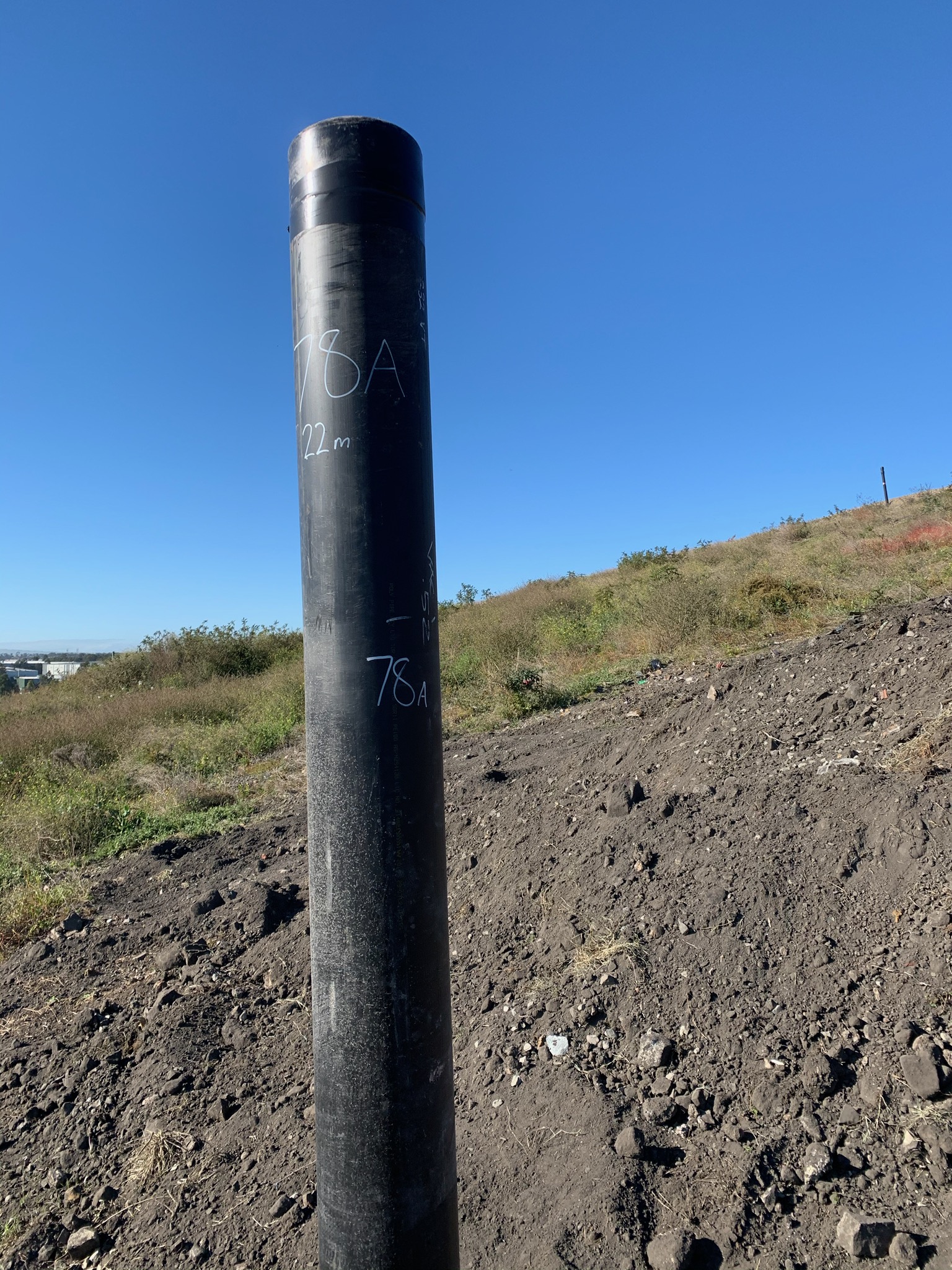

PHOTO COMPLETE WELL
