Drill Log #3342
Site
Melbourne Regional Landfill
Well ID
W6-13
Date Drilled
15-Dec-2023
Responsible Person
Approved Drill Depth (mBGL)
33.4
Completed Drilling Depth (mBGL)
32.6
Well Casing Diameter (mm)
200
Surface R.L.
94.85
Easting
299245.96
Northing
5815882.26
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1.8


Well Seal Length (m)

4

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

4.2

Length of Gravel Above Last Perforation (m)
0.2
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

28.2



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

28.4
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
32.6
Completed Well Casing Depth (m)
32.6
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Clay/Bentonite
Plastic Seal Type
N/A
Well Casing Rating (PN)
16
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
4.2
Perf Pipe Start Depth (mBGL)
4.2
Perf Pipe End Depth (mBGL)
32.6
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
4

CUSTOMER INSPECTION/COMMONUICATION DETAILS
Safe drill depth form approved by Hamid. SafeDrillDepthForm_MRL_Phase6_Rev1.xlsx
21-11-2023 12:00 AM

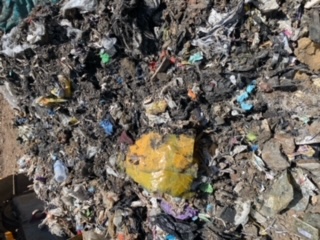

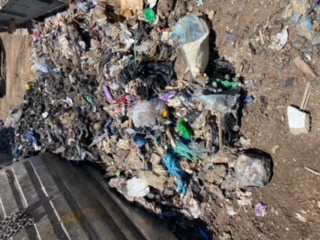

WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other
Photo Thumbail

Melbourne Regional Landfill - W6-13  (4 Waste records)
0 1 Capping Material
1 10 Other Plastics,soil dry waste and bricks
10 20 Other Plastics,soil dry waste
20 32.6 Other Plastics,soil dry waste
PHOTO COMPLETE WELL
