Drill Log #3389
Site
Melbourne Regional Landfill
Well ID
W5-4
Date Drilled
30-Jan-2024
Responsible Person
Approved Drill Depth (mBGL)
36
Completed Drilling Depth (mBGL)
36
Well Casing Diameter (mm)
200
Surface R.L.
98
Easting
299395.13
Northing
5815838.13
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1


Well Seal Length (m)

4

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

5

Length of Gravel Above Last Perforation (m)
1
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

31



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

31
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
36
Completed Well Casing Depth (m)
36
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Clay/Bentonite
Plastic Seal Type
N/A
Well Casing Rating (PN)
16
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
5
Perf Pipe Start Depth (mBGL)
5
Perf Pipe End Depth (mBGL)
36
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
4

CUSTOMER INSPECTION/COMMONUICATION DETAILS
Safe drill depth form approved by Hamid. SafeDrillDepthForm_stage 5_Rev1-FA 23 12 08 CWY.xlsx
08-12-2023 12:00 AM
WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other

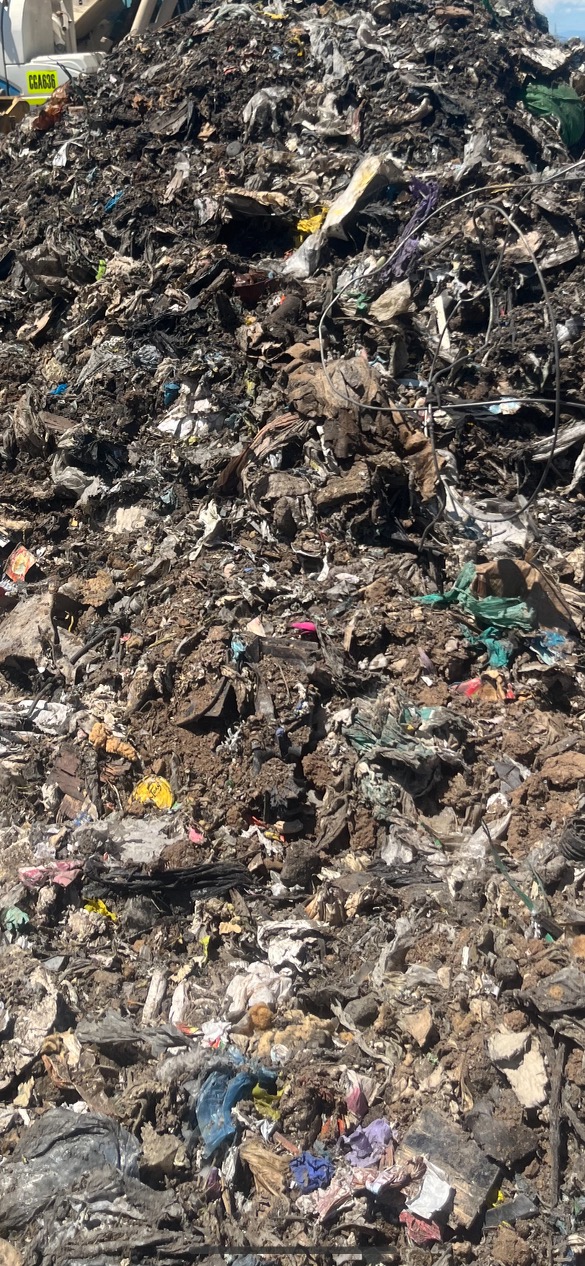

Photo Thumbail

Melbourne Regional Landfill - W5-4  (7 Waste records)
0 3 Capping Material

3 12 Other Timber, wire, plastics. Very dry.
12 21 Other Dry waste, metal rods, plastic, household waste. Clay layers at 13m and 18m.
21 22 Capping Material
22 29 Other Dry waste, plastics, household.
29 36 Other Clay at 31m. Dry plastics, fabrics, wire.
PHOTO COMPLETE WELL
