Drill Log #3438
Site
Melbourne Regional Landfill
Well ID
W4-29
Date Drilled
20-Feb-2024
Responsible Person
Approved Drill Depth (mBGL)
33
Completed Drilling Depth (mBGL)
33
Well Casing Diameter (mm)
200
Surface R.L.
94.4
Easting
299564.98
Northing
5815905.33
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1


Well Seal Length (m)

4

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

5

Length of Gravel Above Last Perforation (m)
1
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

28



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

28
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
33
Completed Well Casing Depth (m)
33
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Clay/Bentonite
Plastic Seal Type
N/A
Well Casing Rating (PN)
16
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
5
Perf Pipe Start Depth (mBGL)
5
Perf Pipe End Depth (mBGL)
33
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
4

CUSTOMER INSPECTION/COMMONUICATION DETAILS
Safe drill depth form approved by Hamid. 015-DN-027. Rev-B 25-01-2024.
25-01-2024 12:00 AM
WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other
Photo Thumbail

Melbourne Regional Landfill - W4-29  (5 Waste records)
0 2.4 Capping Material

2.4 12 Other Dry fresh waste. Plastics, cardboard, wood, carpet. Clay at 8 and 11m.
12 21 Other Dry waste. Carpet, wood, plastics and wool.
21 33 Other Dry waste. Wool, cardboard, timber. Clay at 28m.

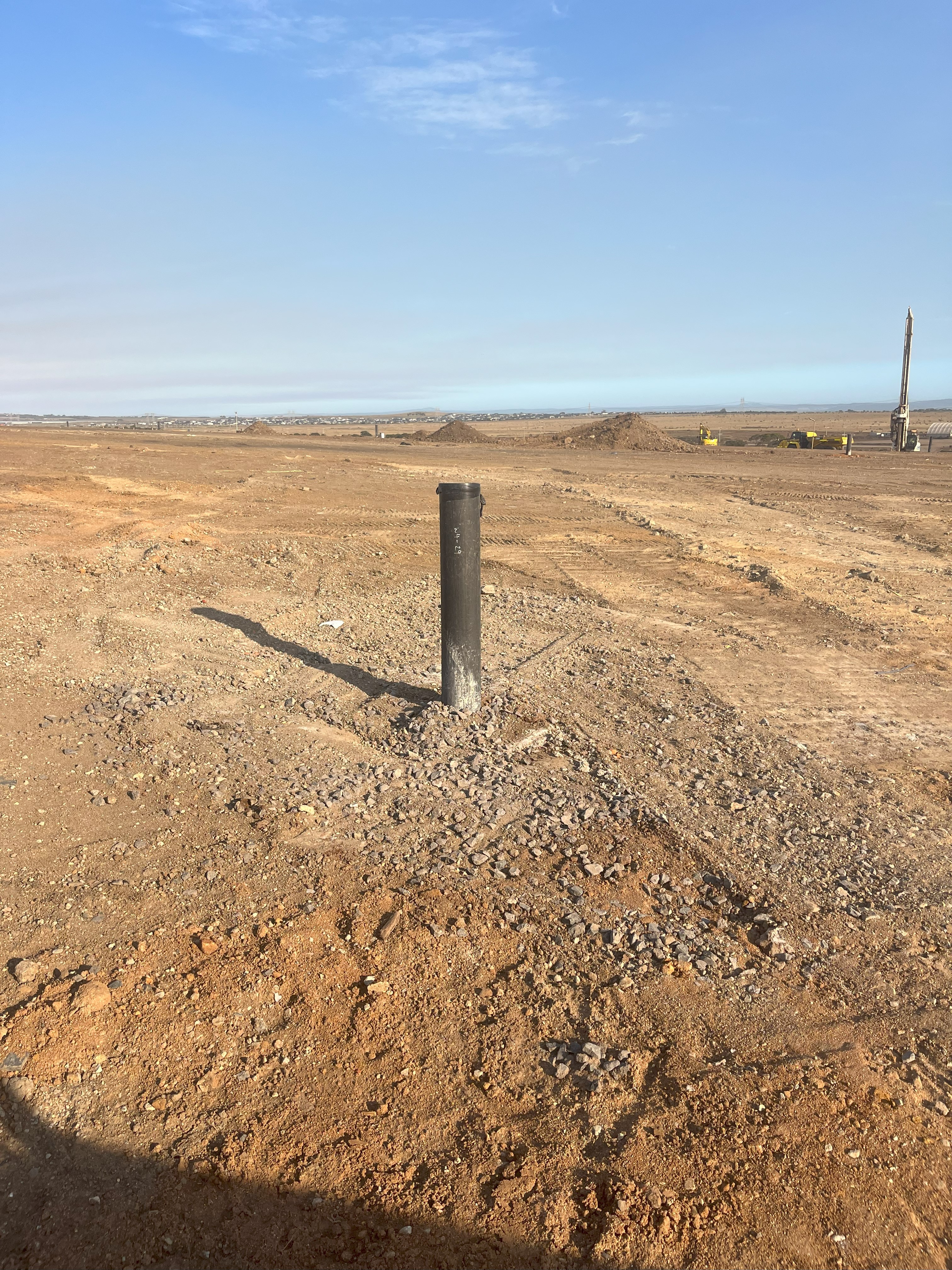

PHOTO COMPLETE WELL
