Drill Log #3446
Site
Melbourne Regional Landfill
Well ID
W4-9
Date Drilled
24-Feb-2024
Responsible Person
Approved Drill Depth (mBGL)
31.2
Completed Drilling Depth (mBGL)
31.2
Well Casing Diameter (mm)
200
Surface R.L.
90.17
Easting
299464.12
Northing
5816022.61
WELL COMPLETION DETAIL

Ground/Liner Level ↓
Length of Riser
1


Well Seal Length (m)

4

↑

W
E
L
L

S
E
A
L

↓


P
L
A
I
N

P
I
P
E



Length of Plain Pipe (m)

5

Length of Gravel Above Last Perforation (m)
1
↖ Plastic Seal
Yes





Length of Gravel Below Last Perforation (m)

26.2



↑



G
R
A
V
E
L

↓

0


0


0


0


0


0


0


0


0


0

__________
END CAP





Length of Perforated Pipe (m)

26.2
WELL COMPLETION SUMMARY

Depths are measurements of Metres Below Ground Level (mBGL) - Ground Level = 0
Completed Drilling Depth (mBGL)
31.2
Completed Well Casing Depth (m)
31.2
Well Type
Gas
Location Left Clean
Yes
Well Seal Type
Clay/Bentonite
Plastic Seal Type
N/A
Well Casing Rating (PN)
16
End Cap Type
Butt Welded
Plain Pipe Start Depth (mBGL)
0
Plain Pipe End Depth (mBGL)
5
Perf Pipe Start Depth (mBGL)
5
Perf Pipe End Depth (mBGL)
31.2
Well Seal Start Depth (mBGL)
0
Well Seal End Depth (mBGL)
4

CUSTOMER INSPECTION/COMMONUICATION DETAILS
Safe drill depth form approved by Hamid. 015-DN-027. Rev-B 25-01-2024.
25-01-2024 12:00 AM
WASTE STREAM
Interval
Start
(mBGL)
Interval
End
(mBGL)
Waste Stream
Other
Photo Thumbail

Melbourne Regional Landfill - W4-9  (10 Waste records)
0 1.5 Capping Material

1.5 5 Other Dry industrial waste. Plastics, foam, rags, rope.
5 13 Other Dry industrial waste, plastics, wood, carpet.
13 14 Capping Material
14 17 Other Dry waste. Plastics, rags.
17 17.5 Capping Material
17.5 23 Other Black waste dry, plastics, rags, wrappers.
23 23.5 Capping Material
23.5 31.2 Other Dry industrial, plastics, rags, wire, decomposing.

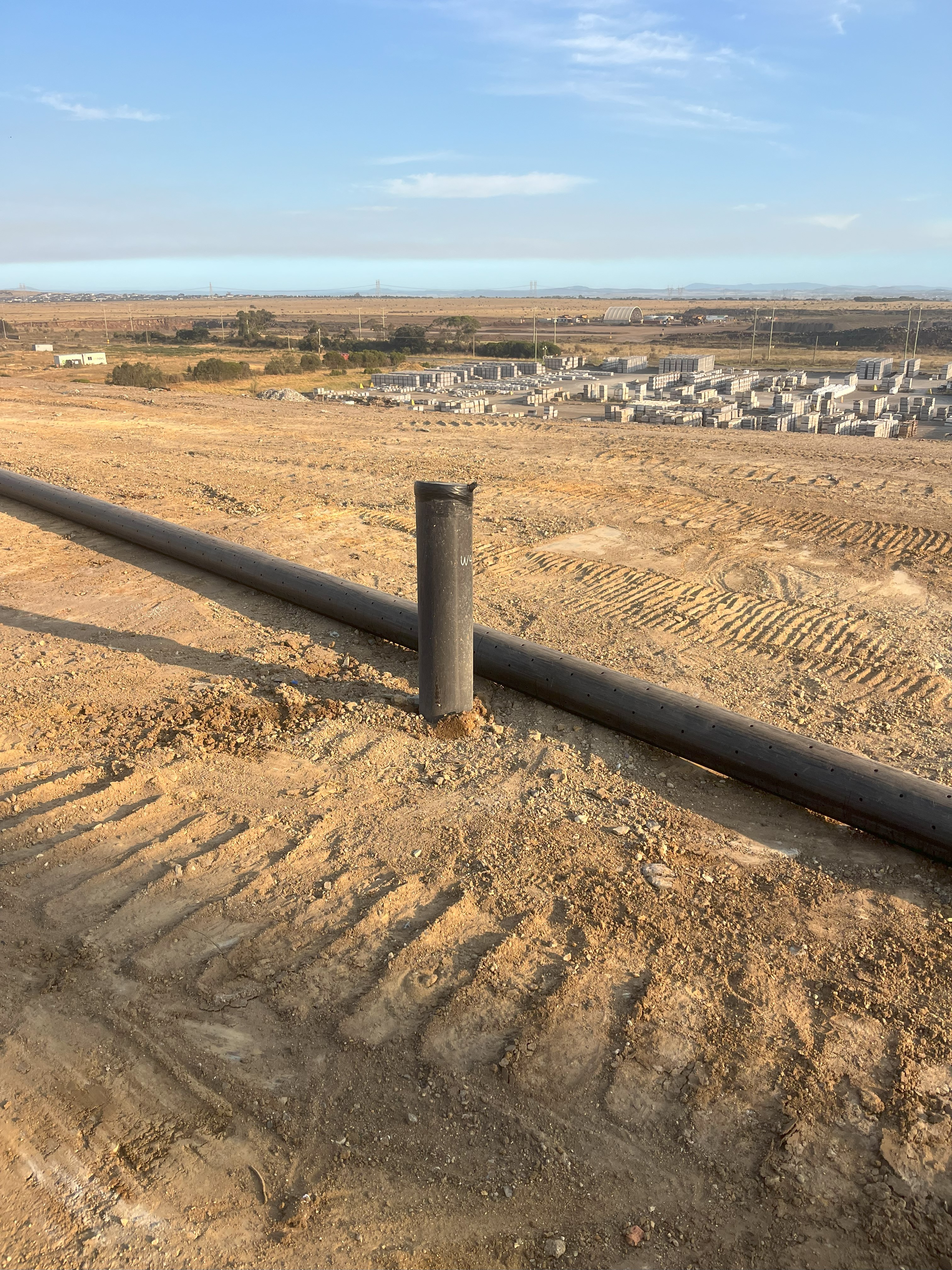

PHOTO COMPLETE WELL
